SDiD™ 1010 is a Near Field Communication (NFC) /
Radio Frequency Identification (RFID) Secure Digital
(SD) Card, designed to plug into any Personal Digital
Assistant (PDA), Smartphone or other hand-held
device with an SD slot. The SDiD™ card offers NFC
two-way communications and RFID read / write
capabilities for portable terminals. Applications include
contactless payments and accessing product,
entertainment and customer loyalty information. The
SDiD™ card can be used for vertical applications such
as asset and document tracking and reading and
writing RFID tags for industries such as health-care,
pharmaceutical, retail logistics and homeland security.
Transaction or tag data can be processed through
mobile connections such as WiFi, Bluetooth, CDMA,
GSM / GPRS or UMTS associated with the portable
device.
|
| Features |
Near Field Communication (NFC)
- NFCIP-1, ISO 18092 compliant
- Supports contactless payment
- Peer to peer communication
- Data exchange speed up to 424 kbit/s
|
Radio Frequency Identification (RFID)
- ISO 14443A compliant
- Supports NXP MIFARE®
- Supports NXP MIFARE DESFire®
- Read, write and search RFID tags
|
SmartCard
- Integrated SAM (Secure Access Module)
- SmartCard compliant JCOP OS
- MIFARE® tag emulation
|
Secure Digital (SD) Card
- SDIO complaint, version 1.10
- SD-1, SD-4, SPI mode
- Extended SD form factor
|
Integrated Antenna
- Compact and reliable design
|
Frequency
|
Supports most PDAs and Smartphones
- Terminals with SDIO enabled SD Card slots
- Microsoft® Pocket PC 2002/2003 with SDIONow! or Windows Mobile 2003 with SDIONow! or Windows Mobile 5.0 or Windows Mobile 6.0
- Supports Palm OS® 4.1 and up
|
Read/Write Range
- Up to 5.0 cm (2.0") depending on tag antenna configuration and environment
|
Low Power Consumption (depending on host device)
- 100 mA (typical) active
- 30 mA (typical) idle
- 10 mA (typical) standby
- 3.3V (typical) operation
|
LED Indicator
- Indication for standby search and data communications
|

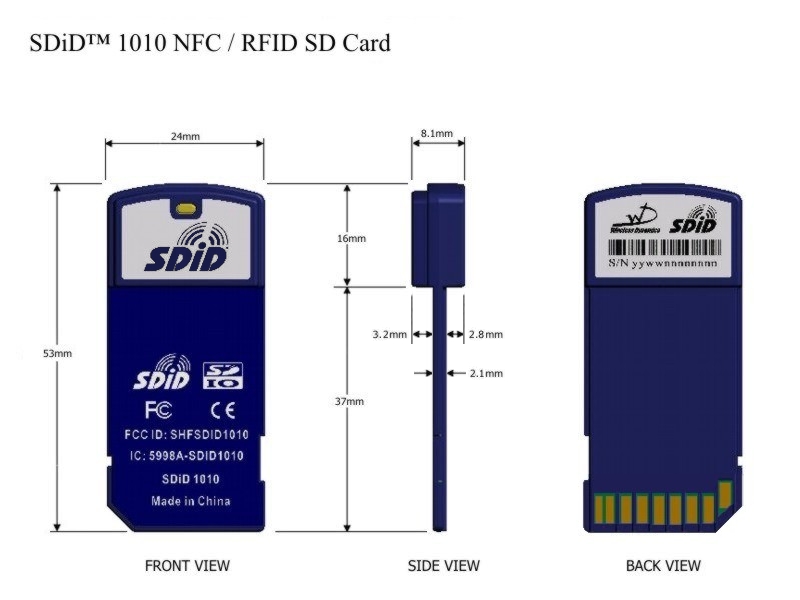

![[Dimensions]](/images/SDiD-1010 Rendering.jpg){kind=link}
